Introduction

Rainwater is slightly acidic, i.e. soft. In heavily industrialised regions, emissions make the rainwater more acidic. The hardness in water comes from the calcium and magnesium salts, that are dissolved into the water, from soluble rocks through which the rainwater flows.

Hard water contains both temporary and permanent hardness. Temporary hardness in most cases is associated with calcium and magnesium carbonates and bicarbonates. These crystal forming salts are held in solution and will remain so, unless there is a change in pressure or temperature, which will cause the water to become supersatuated, resulting in the precipitation of encrusting scale on hot or rough surfaces, such as pipe and heat exchangers. Permanent hardness is due mainly to calcium and magnesium sulphate and is not affected by heat or pressure change. However if the water is evaporated it will remain and will encrust.

HydroFLOW is a technology breakthrough which reliably eradicates limescale problem. The effect has been demonstrated in all installations worldwide. It was introduced to Electrical and Mechanical Services Department of Hong Kong Government in October of 2004 and is widely adopted in hospitals and correctional centres now.

TOP

HydroFLOW produces a specific diminished sinusoidal electric field signal with randomly OFF sequence . The length of the OFF sequence allows adjacent ions move together to form clusters. These clusters representing larger dipoles are affected by the electric field during the ON sequence, and are joined together to form localised areas of high concentration. The internal forces generated by these larger clusters result in a contraction and concentration of the attraction forces, this causes the collapse of the clusters into nuclei which are the seed of crystal.

The presence of the HydroFLOW electric field throughout the solute will enhance the formation of these large clusters by orientating them, in both the saturated and unsaturated solutions. This process attracts more charged species and stable nuclei are formed. The attraction forces of such nuclei become much greater and as ions diffuse to the nuclei surface, a diffusion layer is formed and ion become incorporated into the crystal lattice.

Crystal are formed and grow, again helped by the effect of orientation of the ions by the applied field, and aggregate to form larger crystals. When HydroFLOW is used, the diffusion is enhanced because the ions are orientated by the electric field being applied. For this process to occur throughout the system, the field has to be present throughout the solution, especially closer to the area where the solution will experience changes in temperature or pressure which are responsible for the precipitation of the salts from solution. Small crystals aggregate to form larger crystals that grow at the expense of smaller crystals.

The energy and time necessary to orientate and move the charged species together, will vary for different species. Any crystallising system is characterised by the generation of a spectrum of differently sized particles. The electric field applied by HydroFLOW allows for these differences.

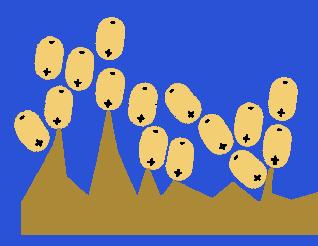

The following pictures show the impurities in ionic form which is free floating in the solution. When there is a change of temperature or pressure, hard scale as shown in Figure 2 is formed. This process is accelerated by a rough surface.

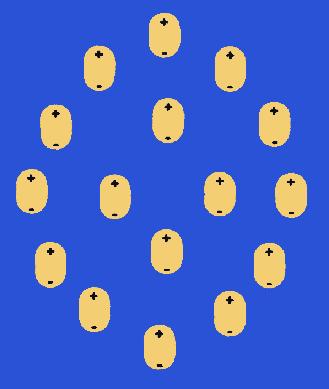

Let's take a look at the difference made by HydroFLOW. Those ions are aligned by the electric field induced into the water and crystallisation is promoted in the solution. As a result existing scale is dissolved into the unsaturated water and no more scale can be formed.

TOP

Applications

HydroFLOW does not rely on water flow rate and hence it can be applied to any applications where limescale is found. The list of applications is too lengthy to be put here but the followings is the typical devices which we can protect.

• Water boiler
• Steam boiler
• Tubular heat exchanger
• Plated heat exchanger
• Condenser
• Cook / Chill device
• Thermal mixing valves
• Steamer
• machine's water cooled system

TOP

Benefits

HydroFLOW gets its popularity at such short time simply because its effectiveness, reliability and the benefits that it can bring to you. The benefits of using it is listed below:

- Eliminate Descaling Chemical

- Less Equipment Down Time and Extended Equipment Life

As no scale is formed, traditional aggressive acid washing procedure is no longer needed. The cleaning procedure not only increases the down time of the equipment but also imposes a general corrosion to the equipment.

Aggressive cleaning procedure results into a rough surface of the heat transfer element which speeds up the formation of new scale. You may realise that new equipment has a lower rate of scale formation than old equipment does.

With no more aggressive cleaning is required, the life of equipment can be extended

Equipment can be protected effectively since no more scale deposit on the surface which acts as a barrier to anti-corrosion agent if scale is present.

When equipment is maintained in a traditional way, the labour cost for cleaning is high. Additional cost incurs if the equipment is corroded and need repairing or replacement.

- Lower Energy Cost

Limescale has a poor thermal conductivity. According to a research conducted by the Department of Energy of United States, a layer of scale with only 0.8mm thickness can cause 8.5% loss in efficiency.

With the HydroFLOW in place, heat can be transferred at its optimal condition.

- Low Power Consumption

HydroFLOW normally consumes less than 20W for its operation. The electricity cost of it is negligible for continuous operation.

- Ease of Installation

HydroFLOW is not an intrusive method and installation can be completed within an hour provided that a single phase power socket is available. There is no change in the pipework and the original equipment.

- Require Minimal Attention

HydroFLOW built on latest low power solid state technology and its typical power consumption is less than 20W. There is no problem of fatigue, wear out, over-heating and fast aging. It is maintenance free and the only attention to it is to make sure the two LEDs on the control unit are lit up.

-Environmental Friendly

This is obvious as this is a non-chemical approach to solve the limescale problem. And less energy used as a result of high efficiency means the globe is less polluted. Less corrosion due to aggressive cleaning means less material or parts required.

TOP

Guidelines

Existing scale is normally broken down. The time taken depends on the volume of water, the flow of water to remove the excess scale crystals, the porosity of the old scale and variation in the temperature and the pressure of the water. In most cases the process is fairly rapid and up to 95% or more of old scales is broken down and treated within the first three months.

Do not install HydroFLOW inside an electrical loop even there is a short circuit protection design built in the unit. Otherwise the performance cannot be achieved.
